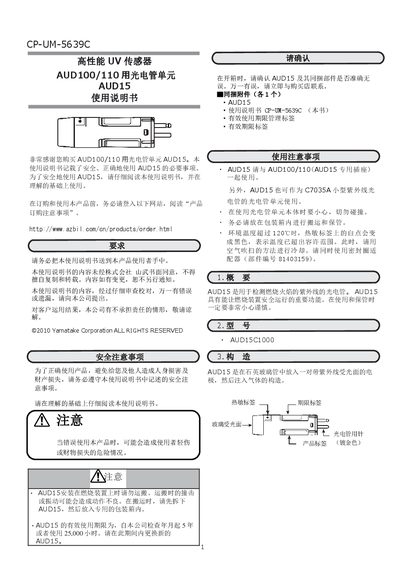

The manual provides safety, installation, operation, maintenance, and service‑life information for the Yamatake AUD15 high‑performance UV sensor used with…
This document describes the AUD15 high‑performance UV sensor, which detects ultraviolet light from combustion flames and is essential for safe burner operation. It outlines the sensor's construction, compatible sockets, and optional use with the C7035A small UV phototube.
The manual details safety precautions, handling instructions, labeling, and the effective service life of the sensor (5 years or 25 000 hours). It also explains how to clean the sensor, manage the thermal label, and replace the unit when its service period expires. This manual is written in Chinese.
| Effective service life | 5 years or 25,000 hours |
|---|---|
| Maximum ambient temperature before label change | 120 °C |
| Compatible socket | AUD100/110 dedicated socket |
| Alternate use | Can be used as phototube unit for C7035A small UV phototube |
| Model number | AUD15C1000 |
| Construction | Quartz glass tube with electrodes and gas fill |
The AUD15 is rated for 5 years from the inspection date or 25 000 hours of operation.
When the ambient temperature exceeds 120 °C, the white spot on the thermal label turns black.
The AUD15 must be used with the dedicated AUD100/110 socket.
Yes, it can also serve as the phototube unit for the C7035A small UV phototube.
