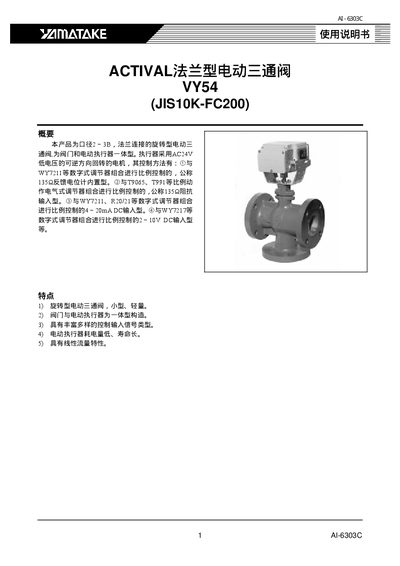

AI-6303C ACTIVAL flange-type electric three-way valve VY54 (JIS10K-FC200) is a rotating electric three-way valve with a diameter of 2~3B. It is small and lightweight. The valve and electric actuator are integrated, and it can use various types of control input signals. It has low power consumption, long lifespan, and linear flow characteristics.
The VY54 is a compact, lightweight, flange‑type electric three‑way valve that integrates the valve body and actuator into a single unit. It uses a low‑voltage AC 24 V motor, offers low power consumption, long actuator life, and exhibits linear flow characteristics.
The valve supports a variety of control signal inputs, including a 135 Ω feedback potentiometer, a 135 Ω impedance input, 4–20 mA DC, and 2–10 V DC signals. Model codes indicate the specific control type and size options, with dimensions such as 90A (Cv 45), 65A (Cv 70) and 80A (Cv 100). This manual is written in Chinese.
| Actuator voltage | AC 24 V low voltage |
|---|
