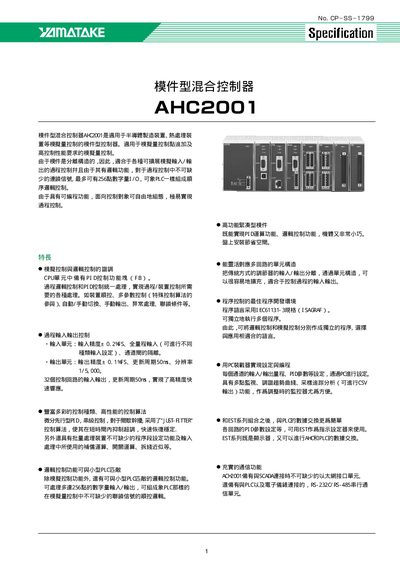

Chinese user manual for the Yamatake AHC2001 modular hybrid controller, covering specifications, wiring, and operation.
The AHC2001 is a modular hybrid controller designed for process control applications such as semiconductor manufacturing and material handling. It supports up to 256 digital I/O points and can be programmed with IEC 61131‑3 (ISaGRAF) language.
The manual provides detailed hardware specifications, installation guidelines, communication options (RS‑232C, RS‑485, Ethernet), and configuration procedures for power, CPU, I/O, and Ethernet modules. This manual is written in Chinese.
| Input voltage (AC) | 85 ~ 250 VAC |
|---|---|
| Maximum power consumption (AC unit) | 160 VA or less |
| Digital I/O points | Up to 256 points |
| Number of control loops | Up to 32 loops |
| Input accuracy | ±0.29 %FS |
The controller can handle up to 256 digital I/O points.
The AC power unit consumes no more than 160 VA.
