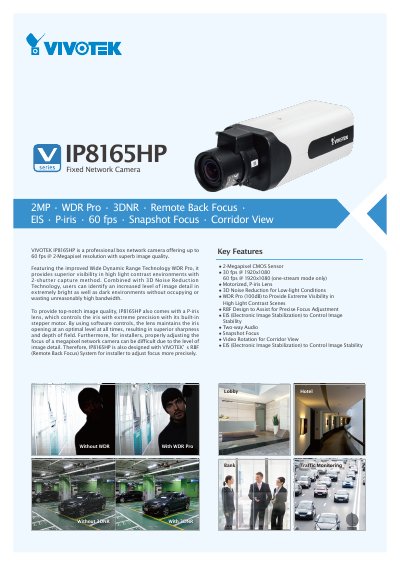

This document describes the VIVOTEK IP8165HP, a professional box network camera featuring WDR Pro, 3D Noise Reduction, and Remote Back Focus capabilities.
The VIVOTEK IP8165HP is a professional box network camera offering up to 60 fps at 2-Megapixel resolution. It features improved Wide Dynamic Range Technology (WDR Pro) for superior visibility in high light contrast environments, combined with 3D Noise Reduction Technology for detailed image capture in both bright and dark conditions.
The camera includes a motorized P-iris lens controlled by software to maintain optimal iris opening for sharpness and depth of field. It also features the VIVOTEK Remote Back Focus (RBF) system, allowing installers to adjust focus more precisely. The device supports two-way audio, electronic image stabilization (EIS), snapshot focus, and video rotation.
| Maximum Resolution | 1920x1080 (2MP) |
|---|---|
| Maximum Frame Rate | 60 fps @ 1920x1080 (one-stream mode only) |
| Lens Type | Vari-focal P-iris |
| Field of View (Horizontal) | 40° ~ 122° |
| Minimum Illumination (Color) | 0.17 Lux @ F1.2 |
| Dimensions | 210 mm (D) x 70 mm (W) x 63 mm (H) |
| Operating Temperature | -10°C ~ 50°C |
The camera offers up to 60 fps at 1920x1080 resolution, but this is available only in one-stream mode.
Yes, it supports two-way full duplex audio with an external microphone input and audio output.
It allows installers to adjust the focus of the megapixel network camera more precisely.
