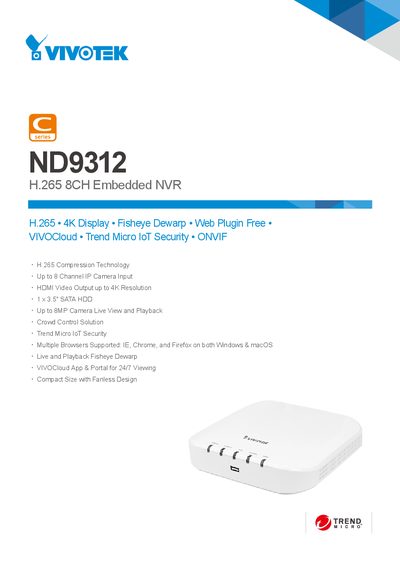

The VIVOTEK ND9312 Embedded NVR data sheet outlines its H.265 video compression, 8‑channel inputs, 4K output, and technical specifications.
The VIVOTEK ND9312 is an 8‑channel embedded NVR that supports H.265, H.264 and MJPEG video compression, 4K live view and playback, and fisheye de‑warp functions. It includes built‑in Trend Micro IoT Security, VIVOCloud remote access, and ONVIF compatibility for easy integration with IP cameras.
Technical specifications include a single 3.5" SATA HDD slot, HDMI video output up to 3840×2160, power input DC 12 V 3 A, and a compact fan‑less design measuring 198 mm × 200 mm × 47 mm. The device runs on Embedded Linux and offers extensive network and storage features such as FTP, email alerts, and USB 2.0 ports.
| Channels | 8 |
|---|---|
| Video Output | HDMI x1 |
| Maximum Resolution | 3840×2160 |
| Power Input | DC 12V 3A |
| Dimensions (W×D×H) | 198 mm × 200 mm × 47 mm |
| Operating Temperature | 0 °C ~ 40 °C |
It supports H.265, H.264 and MJPEG video formats.
The unit provides one 3.5" SATA HDD slot.
The NVR includes Trend Micro IoT Security and supports VIVOCloud for remote monitoring.
It supports IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, and DDNS.
