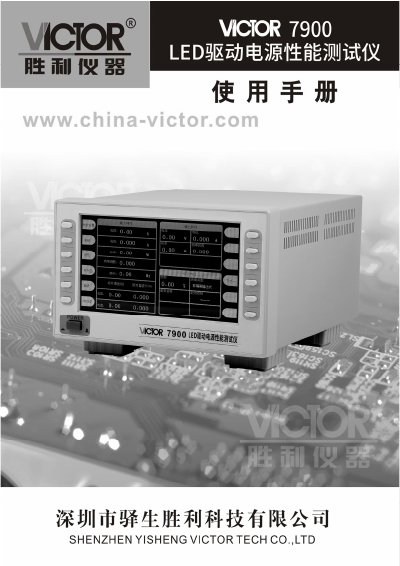

This manual covers the operation, settings, wiring, and troubleshooting for the Victor VICTOR7900 electrical parameter meter.
The Victor VICTOR7900 is a digital power meter designed with an advanced 32-bit high-speed processor and dual-channel 24-bit AD converters. It features high precision, a wide dynamic range, and a compact structure, making it suitable for evaluating the energy-saving performance of equipment such as LED driver power supplies. This manual is written in Chinese.
| Processor | 32-bit high-speed processor |
|---|---|
| AD Converter | Dual-channel 24-bit AD converters |
| Input Voltage Range (Input Characteristic) | 5V-600V |
| Input Current Range (Input Characteristic) | 5mA-20A |
| Frequency Range (Input Characteristic) | DC,45Hz-65Hz |
| Measurement Accuracy | ±（0.15% reading + 0.15% range） |
| Data Update Cycle | 3 times/second |
It meets the ICE.62301-2016 standard.
The instrument can measure up to the 50th harmonic.
It notifies via display information, sound alarms (beep), or relay output.
