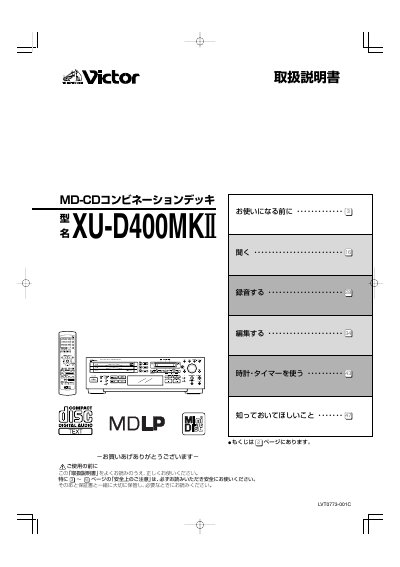

The Victor XU-D400MKII manual begins with safety precautions, warning users to keep water away, avoid inserting objects, and handle the power plug correctly to prevent fire or electric shock. It also explains proper handling of batteries and the importance of keeping the unit in a well‑ventilated environment.
The guide then describes the main features such as CD‑TEXT support, long‑play MD recording modes, analog and digital input options, RS‑232C control, and remote‑control functions. Connection diagrams, timer functions, and detailed specifications (power consumption, dimensions, sampling rates, etc.) are provided to help users set up and operate the deck safely and efficiently. This manual is written in Japanese.
| Power consumption (ON) | 17 W |
|---|---|
| Input voltage | AC 100 V (50 Hz/60 Hz) |
| Dimensions (W × H × D) | 435 mm × 157 mm × 318 mm |
| CD audio sampling rate | 44.1 kHz |
| MD recording mode LP4 duration | 320 minutes |
| Analog input connector wiring | White plug = left channel, Red plug = right channel |
| RS‑232C / Make‑contact terminals | RS‑232C ×1, Make‑contact ×18 |
Use the supplied pin cable, connecting the white plug to the left‑channel input and the red plug to the right‑channel input.
The unit consumes 17 W when powered on.
It measures 435 mm × 157 mm × 318 mm and weighs about 6.1 kg.
