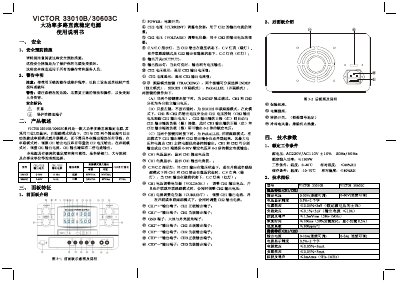

This manual provides operating instructions, safety precautions, and specifications for the VICTOR 30603C dual-channel power supply.
The VICTOR 30603C is a dual-channel power supply featuring independent operation and tracking modes (series and parallel). It includes two 3-digit 0.56' LED displays for voltage and current on both channels, allowing for precise control and monitoring of power output. This manual is written in Chinese.
| Output Voltage (CH3) | 5V |
|---|---|
| Load Regulation | 3%+5mV |
| Line Regulation | 5mV |
| Ripple and Noise | 2mV |
| Insulation Resistance | >20MO |
| Input Voltage | AC220V |
The power supply should be powered by AC220V within a range of ±5% at 50Hz/60Hz.
Place the POWER switch in the ON state and adjust the VOLTAGE knob until the output reaches the desired value.
If the output voltage is lower than expected and the CC light is on, the unit has automatically switched to constant current mode due to current protection.
