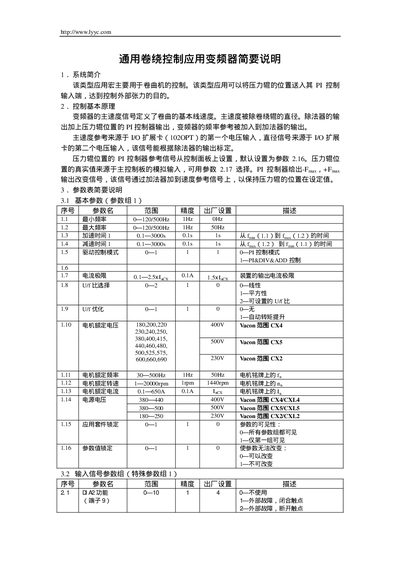

The Vacon CX/CXL Variable Frequency Drive Manual provides system overview, control principles, parameter settings, and protection functions.
This manual describes the Vacon CX/CXL variable frequency drive used for winding control applications. It includes a system overview, basic control theory, and detailed parameter tables for configuring the drive.
Key sections cover input signal parameters, output and monitoring settings, drive control options, protection features, and automatic restart functions. Parameter blocks and example settings are provided for motor voltage, frequency, speed, and safety limits. This manual is written in Chinese.
| Minimum frequency | 0 Hz |
|---|---|
| Maximum frequency | 50 Hz |
| Acceleration time | 1 s |
| Deceleration time | 1 s |
| Motor rated frequency | 30‑500 Hz |
The minimum frequency is 0 Hz.
It is controlled by a PI controller whose reference is set on the control panel (parameter 2.16).
