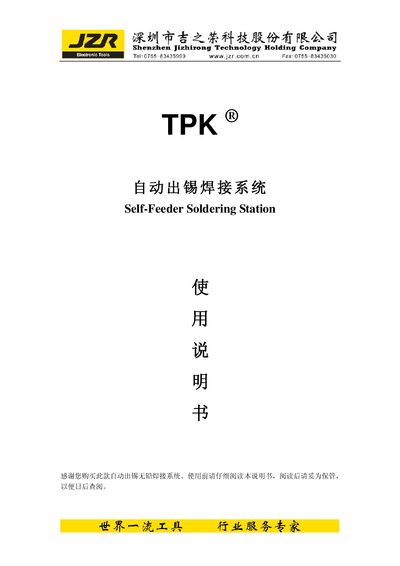

The TPK Self-Feeder Soldering Station User Manual provides setup, operation, safety warnings, and maintenance instructions for the automatic lead‑free…
The TPK Self‑Feeder Soldering Station is a fully automatic lead‑free soldering device with a micro‑computer display, keypad temperature control, and stepper‑motor driven solder feed. It offers adjustable solder feed speed, amount, and interval, as well as optional short or long feed tubes and foot‑switch operation.
The manual covers safety warnings, installation steps, panel functions, parameter settings (speed, length, interval, mode, return time), temperature calibration, password protection, sleep mode, and detailed maintenance procedures including tip care and component replacement. This manual is written in Chinese.
| Power supply voltage | 36 V / 400 kHz |
|---|---|
| Maximum power consumption | 90 W |
| Iron temperature range | 200 °C ~ 480 °C |
| Iron tip leakage voltage | < 2 mV |
| Solder feed speed | ≈ 2.7 mm/s ~ 27 mm/s (36 °/s ~ 360 °/s) |
| Solder feed amount | 0 ~ 150 mm |
| Solder interval time | 0 ~ 2.7 s |
| Return time | 0 ~ 0.9 s (≈ 0 ~ 25 mm) |
| Solder wire diameter options | 0.5 mm ~ 1.6 mm |
| Maximum solder wire amount | 1 kg spool |
Turn off the power and allow the tip to cool to room temperature before removing or installing a new tip.
