TPK 4100B High Voltage Power Supply is a single-phase power supply with an output voltage of 7KV.

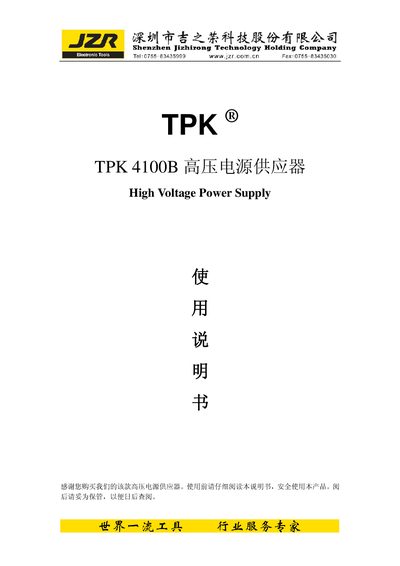

The TPK 4100B is a single‑phase high‑voltage power supply designed for use with the 4100A ion‑wind nozzle, delivering a 7 kV output. The manual provides safety instructions, technical specifications, installation steps, operating procedures, maintenance routines, and fault‑diagnosis guidance.
All installation and servicing must be performed by trained personnel. Proper grounding, avoidance of corrosive or flammable environments, and regular inspection of the high‑voltage line and nozzle are essential for safe and reliable operation. This manual is written in Chinese.
| Model | TPK4100B |
|---|---|
| Input Voltage | 230 VAC, 50/60 Hz |
| Output Voltage | 7 kV |
| Secondary Short‑Circuit Current | < 4.5 mA |
| Rated Power | < 30 W |
| Operating Temperature | 0 °C ~ 50 °C |
| Relative Humidity | 10 % ~ 90 % RH |
Connect the supplied yellow‑green grounding wire between the power‑supply ground terminal and the chassis or earth, then verify the ground resistance is less than 49 Ω.
