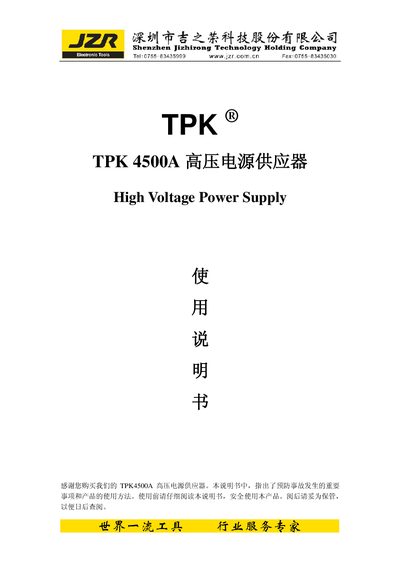

TPK 4500A high voltage power supply is a single-phase power supply with an output voltage of 4KV (0--20%). The power supply is equipped with a delay function, which makes it more stable to output ionized air in conjunction with photoelectric proximity switch, and is more suitable for production line operation.
The TPK4500A high‑voltage power supply is designed for ion‑wind devices and includes safety warnings such as avoiding hazardous environments, keeping the unit away from flammable or corrosive substances, and ensuring proper grounding. The manual emphasizes regular maintenance and inspection to prevent insulation failure and electric shock.
Detailed sections cover technical parameters, step‑by‑step installation, connection of high‑voltage and air‑supply lines, operation using foot or photo‑electric switches, delay‑function adjustment, and routine testing. Spare parts replacement and troubleshooting guidance are also provided. This manual is written in Chinese.
| Output high voltage | 4.0 kV AC (0‑20%) |
|---|---|
| Secondary short‑circuit current | < 3 mA |
| Rated power | < 30 VA |
| Dimensions | 183 × 115 × 80 mm |
| Weight | 3.0 kg |
| Operating temperature | 0 °C to 50 °C |
| Relative humidity | 10 % to 90 % RH |
After grounding the unit, connect the high‑voltage cable to the “High Voltage Out” terminal and tighten the knob by hand; do not use tools.
Turn off the power and unplug the unit, open the top cover, and adjust potentiometer YR1 on the circuit board; clockwise shortens the delay, counter‑clockwise lengthens it up to a maximum of 128 seconds.
