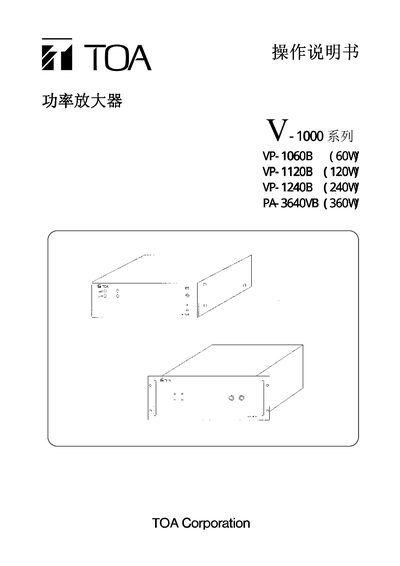

TOA V-1000 Series Power Amplifier User Manual

This manual covers the operation and installation of TOA V-1000 series power amplifiers, including safety precautions, specifications, connections, and…

Brand: TOA
Category: amplifier
Document type: User Manual
Language: Chinese
Pages: 18
File format: PDF
File size: 462 KB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 8AC27357D0BCB76AF6EABA1496405420
PDF: TOA V-1000 Series Power Amplifier User Manual PDF

About this manual

The TOA V-1000 series is a programmable system designed for commercial applications such as stores, hotels, and supermarkets. It includes models with 120W (VP-1120B), 240W (VP-1240B), and 360W (PA-3640VB) ratings, featuring high performance and quality. This manual is written in Chinese.

What's inside

Safety Precautions
Overview
Specifications
Installation
Power Connections
Input/Output Connections
Emergency Relay
Accessories

Specifications

Rated Output (VP-1120B)	120W RMS
Rated Output (VP-1240B)	240W RMS
Rated Output (PA-3640VB)	360W RMS
Power Consumption (VP-1120B)	350VA

Frequently asked questions

What are the models included in the V-1000 series?

The series includes VP-1120B (120W), VP-1240B (240W), and PA-3640VB (360W).

Can the amplifier operate on DC power?

Yes, it can work under AC or 24V DC conditions.
