This document is an instruction manual for a car amplifier, which describes the nomenclature and function of the product, installation method, and connection instructions.

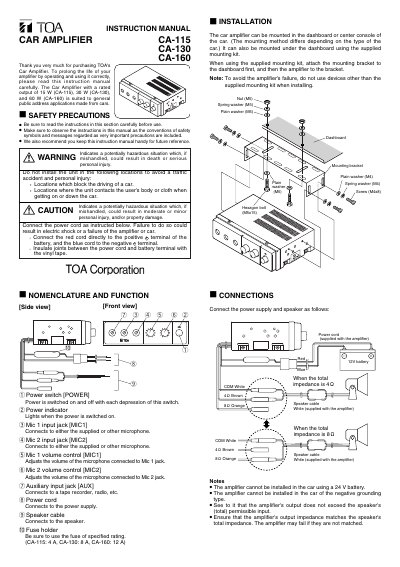

This document is the instruction manual for the TOA CA-115, CA-130, and CA-160 car amplifiers. These units are designed for general public address applications in vehicles with a rated output of 15 W, 30 W, and 60 W respectively. The guide provides essential safety precautions regarding installation locations and power connections to prevent injury or equipment failure.
| Rated Output (CA-115) | 15 W |
|---|---|
| Rated Output (CA-130) | 30 W |
| Power Source Standard Voltage | 14 VDC |
| Operating Range | 10-16 VDC (12 V battery) |
| Distortion | Under 5% (1 kHz, rated output) |
| Frequency Response | 100 Hz - 10 kHz within +3 dB |
The specified fuse rating for the CA-160 model is 12 A.
No, the amplifier cannot be installed in cars of the negative grounding type.
The operating range is 10-16 VDC, suitable for a standard 12 V battery.
