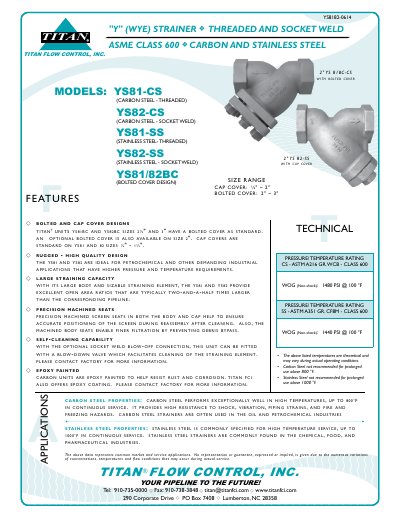

Titan Y (Wye) Strainer data sheet with specifications, materials, dimensions, pressure/temperature ratings and cover options.
The Titan Y (Wye) Strainer is offered in carbon steel and stainless steel constructions with threaded or socket‑weld ends. It is designed for demanding industrial applications such as petrochemical, chemical, food and pharmaceutical processes, providing high pressure and temperature capability.
The strainer is available in a range of sizes from ¼" to 3" with optional bolted or cap covers, self‑cleaning capability, and interchangeable screen elements. Detailed dimensions, flow coefficients, weight, and material specifications are provided for each model.
| Body Material (Carbon Steel) | ASTM A216 Gr. WCB |
|---|---|
| Pressure Rating (Carbon Steel) | 1480 PSI @ 100 °F |
| Pressure Rating (Stainless Steel) | 1440 PSI @ 100 °F |
| Maximum Service Temperature (Carbon Steel) | 800 °F |
| Maximum Service Temperature (Stainless Steel) | 1000 °F |
| Size Range | ¼" – 3" |
The 2" size can be ordered with either a bolted cover or a cap cover.
All straining elements are made of stainless steel.
The strainer has self‑cleaning capability and can be equipped with an optional socket‑weld blow‑off connection for cleaning.
