This is a product catalogue, which contains a series of surface mount LEDs. It has normal brightness and high brightness, and it is available in red, orange, yellow and green. The size is 1.6x0.8, 2.0x1.25, 1.0x0.8 and 1.4x0.8.

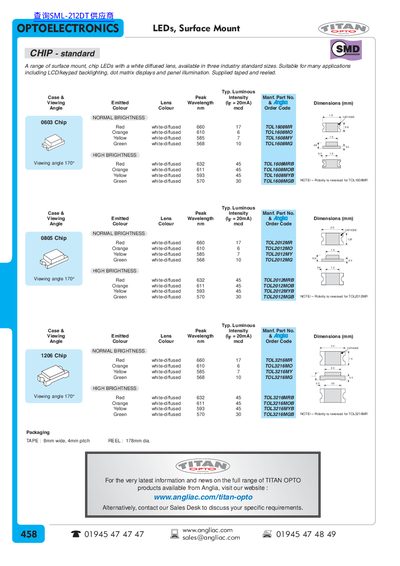

Titan Opto provides surface‑mount chip LEDs in standard 0603, 0805, 1206 sizes with white‑diffused lenses. Both normal‑brightness and high‑brightness versions are listed, showing color, wavelength, viewing angle and part numbers for each size.
The LEDs are supplied on tape (8 mm wide, 4 mm pitch) or on reel (178 mm diameter). Ordering information and contact details are provided, directing customers to the Titan Opto website and sales email.
| Viewing angle (Normal Brightness 0603 Red) | 170° |
|---|---|
| Peak wavelength (Normal Brightness 0603 Red) | 660 nm |
| Package size | 0603 chip |
| Tape width | 8 mm |
| Reel diameter | 178 mm |
They are supplied on tape (8 mm wide, 4 mm pitch) or on reel (178 mm diameter).
