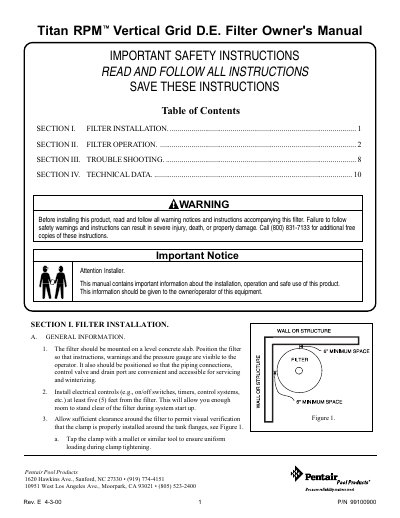

This manual contains information on installation, operation and troubleshooting of the Titan RPM™ Vertical Grid D.E. Filter.
This manual provides comprehensive installation guidelines for the Titan RPM Vertical Grid D.E. Filter, emphasizing proper mounting on a level concrete slab with sufficient clearance for maintenance and drainage. It details electrical control placement requirements to ensure operator safety during system startup.
The document covers operational procedures, specifically highlighting the necessity of using diatomaceous earth to prevent damage to filter elements. It includes critical safety warnings regarding high-pressure operation and provides step-by-step instructions for installing the filter clamp to prevent lid blow-offs.
| Maximum Working Pressure | 50 psi |
|---|
The filter requires one of the following PurexTriton accessories which must be purchased separately: Push-Pull valve, Multiport valve, or Bulkhead union set.
Never operate the filter in excess of three minutes without using diatomaceous earth, as this will damage filter elements and shorten filtering cycles.
Only a silicone base lubricant should be used on the O-rings to avoid damage; do not use pipe joint compound, glue, or solvent.
