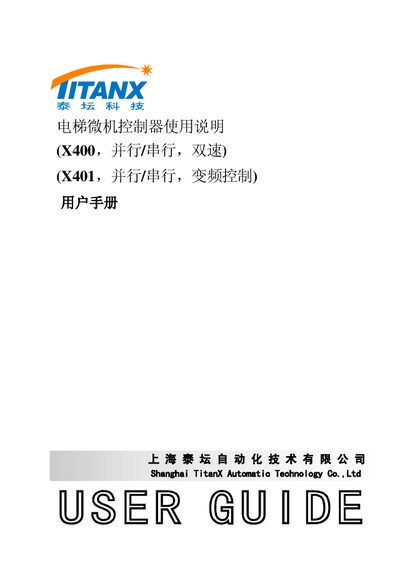

The Titan X400/X401 elevator microcontroller user manual provides installation, wiring, configuration, and troubleshooting instructions.
This manual describes the X400/X401 series elevator microcontroller, covering its installation, commissioning, operation, and maintenance. It is intended for elevator designers, on‑site wiring technicians, and maintenance personnel.
The controller supports parallel and serial communication, dual‑speed operation, and optional VFD control. It includes detailed grounding requirements, power specifications, input/output port descriptions, parameter settings, and fault‑diagnosis procedures. This manual is written in Chinese.
| Power supply voltage | DC24V |
|---|---|
| Auxiliary power supply voltage | DC5V |
| Power supply tolerance | ±5% |
| Maximum current (≤10 floors) | 2A |
| Maximum current (>10 floors) | 4.5A |
| Relay contact rating | 5A 250VAC / 5A 30VDC |
| Number of input ports | 32 |
The controller requires a DC24 V supply and a DC5 V supply, both provided on the JP1 terminal block.
It provides 32 optically isolated input ports, arranged on the JP6 connector.
