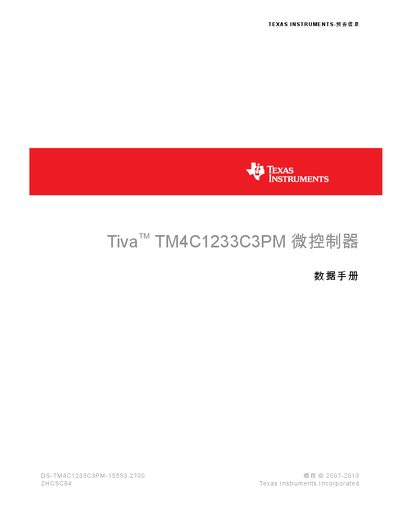

Texas Instruments TM4C1233C3PM Microcontroller Datasheet

About this manual

This datasheet describes the TM4C1233C3PM microcontroller, part of Texas Instruments' Tiva™ C series. It details the ARM Cortex‑M4F processor core, on‑chip memory, and a wide range of peripherals such as GPIO, timers, ADC, UART, I2C, CAN, and USB.

The document includes register maps, functional descriptions, power‑management options (sleep and hibernation), JTAG debugging interface, and comprehensive electrical characteristics, including maximum ratings and package information. This manual is written in Chinese.

What's inside

• Structure Overview
• Cortex‑M4F Processor
• Peripheral Overview
• JTAG Interface
• System Control
• Power Management
• Memory
• GPIO
• Timers
• ADC

Specifications

Frequently asked questions

What processor core does the TM4C1233C3PM use?

It uses an ARM Cortex‑M4F processor core.

Where can I find information about the JTAG interface pins?

The JTAG interface pins are described in the JTAG section of the datasheet.
