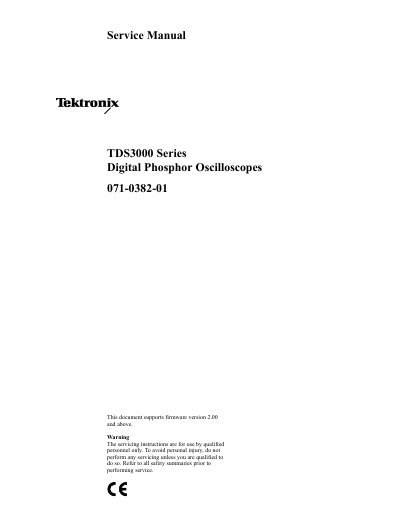

The Tektronix TDS3000 Series Service Manual provides detailed servicing, maintenance, and troubleshooting procedures for the Digital Phosphor Oscilloscopes.
This Service Manual is intended for qualified service personnel who need to maintain, adjust, or repair Tektronix TDS3000 Series digital phosphor oscilloscopes. It includes safety warnings, warranty information, and a complete set of procedures for servicing the instrument.
The manual covers specifications, front‑ and rear‑panel connectors, power‑supply details, adjustment processes, troubleshooting steps, and extensive parts lists with diagrams. Appendices provide replaceable‑parts numbers, accessory information, and multilingual user‑reference manuals.
| Input impedance (DC coupled) | 1 MΩ ±1% in parallel with 13 pF ±2 pF |
|---|---|
| Analog bandwidth | Up to 500 MHz (TDS3054 model) |
| Digitizer resolution | 9‑bit resolution per channel |
| Typical rise time | 0.7 ns – 3.5 ns depending on model |
Only qualified personnel should perform servicing, and all safety summaries must be reviewed to avoid personal injury.
The DC‑coupled input impedance is 1 MΩ ±1% in parallel with 13 pF ±2 pF.
