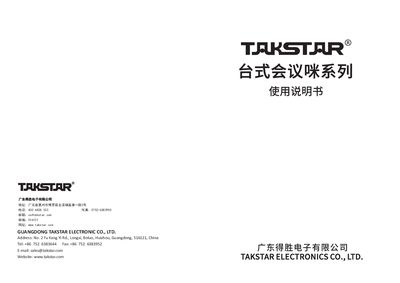

This manual provides usage instructions, precautions, and technical specifications for the TAKSTAR MS-118 table conference microphone.
The TAKSTAR MS-118 is a professional table conference microphone designed for large-scale conferences, public address systems, and outdoor speeches. It features a back electret condenser cartridge that delivers clear sound with high sensitivity and low noise. The flexible gooseneck design allows for easy adjustment to meet various positioning needs. This manual is written in Chinese.
| Element Type | Back electret condenser |
|---|---|
| Polar Pattern | Uni-directional |
| Frequency Response | 50Hz~16KHz |
| Sensitivity | -38dB±3dB (0dB=1V/Pa at 1KHz) |
| Output Impedance | 200Ω±30% (at 1KHz) |
| Operating Voltage | 3V Battery (Two 1.5V battery) |
The best distance from the microphone cartridge should be kept at 5 to 30 cm.
Howling occurs if the cartridge is covered by hand or placed close to speakers.
The package includes one windscreen sponge, a connection cable, and two AA size batteries.
