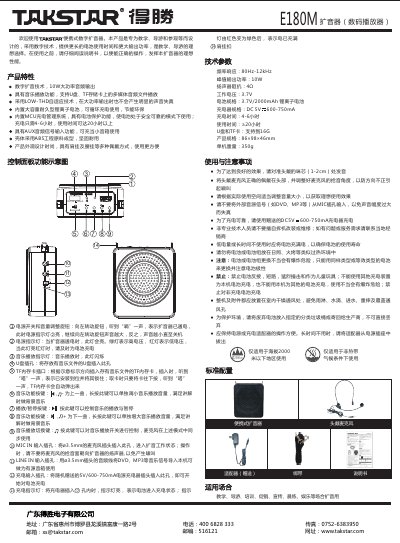

The manual provides usage instructions, safety warnings, charging guidance and technical specifications for the TAKSTAR E180M portable digital voice amplifier.
The TAKSTAR E180M is a portable digital voice amplifier designed for teaching, tour guiding, training, promotion and entertainment. It features a head‑worn microphone, 10 W audio output, USB/TF music playback and a rechargeable lithium‑ion battery for up to 20 hours of operation.
The manual covers safety precautions, proper microphone positioning, volume adjustment, charging procedures, audio function controls, and detailed technical specifications. It also includes warranty and service contact information. This manual is written in Chinese.
| Output Power | 10 W |
|---|---|
| Frequency Response | 80 Hz‑12 kHz |
| Operating Voltage | 3.7 V |
| Battery Capacity | 3.7 V / 2000 mAh lithium‑ion |
| Playtime | ≥20 hours |
| Dimensions | 86 × 98 × 46 mm |
| Weight | 350 g |
| USB/TF Card Support | Up to 16 GB |
The battery provides at least 20 hours of use on a full charge.
No, external audio signals should not be inserted into the MIC jack to avoid distortion.
Place the microphone capsule 1‑2 cm from your mouth and adjust the pickup angle.
