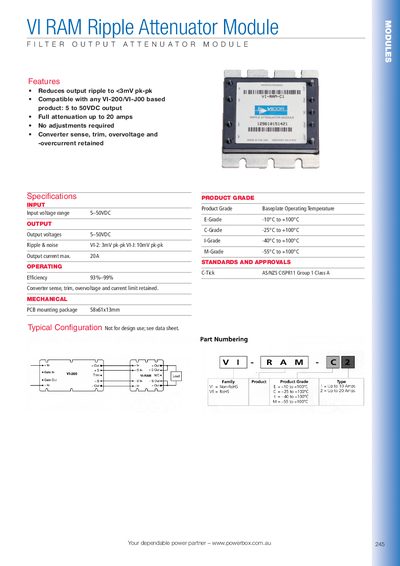

The VI RAM Ripple Attenuator Module is a compact add‑on that lowers output ripple to less than 3 mV peak‑to‑peak for VI‑2 devices and 10 mV for VI‑J devices. It works with any VI‑200/VI‑J00 based system without requiring adjustments.
The module operates from 5 V to 50 VDC input, delivers up to 20 A output current, and meets a wide temperature range across product grades. It is RoHS compliant, features built‑in over‑voltage and over‑current protection, and mounts on a 58 × 61 × 13 mm PCB footprint.
| Input voltage range | 5–50 VDC |
|---|---|
| Output voltage range | 5–50 VDC |
| Maximum output current | 20 A |
| Ripple reduction (VI‑2) | <3 mV pk‑pk |
| Efficiency | 93%–99% |
| PCB mounting package | 58 × 61 × 13 mm |
| Operating temperature (E‑Grade) | -10 °C to +100 °C |
The module can deliver up to 20 A of output current.
It reduces the output ripple to less than 3 mV peak‑to‑peak.
It accepts an input voltage from 5 V to 50 VDC.
The PCB mounting package measures 58 × 61 × 13 mm.
