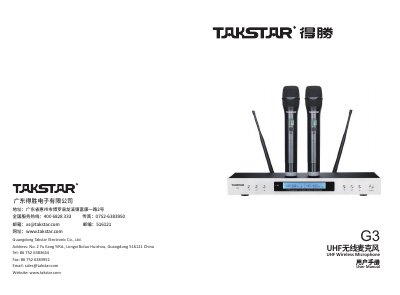

The Takstar G3 UHF wireless microphone user manual provides safety instructions, operation steps, troubleshooting and technical specifications.
This manual explains safe usage of the Takstar G3 UHF wireless microphone system, including power requirements, battery handling, and environmental precautions. It details the receiver’s front and rear panel functions, LCD panel indicators, and how to configure channels, power levels, and squelch settings.
The guide also covers handheld microphone operation, infrared frequency matching, lock functions, auto‑scan, and troubleshooting of common issues such as no audio, RF signal loss, or interference. Technical specifications such as frequency range, output power, sensitivity and connector types are listed at the end of the document. This manual is written in Chinese.
| Frequency range | 600~950 MHz (divided into bands) |
|---|---|
| Transmitting power | ≤10 mW |
| Receiver power supply | DC 12 V |
| Transmitter power supply | 2 AA batteries |
| Operating range | 50 m |
| Sensitivity | ≤ -90 dBm |
| Signal‑to‑noise ratio | ≥ 95 dB |
| Total harmonic distortion | ≤ 0.5 % (at 1 kHz) |
| Channel quantity | 2 channels |
| Audio outputs | Independent balanced XLR and unbalanced 6.3 mm |
Up to 12 transmitters can operate in the same space if the frequency is set correctly.
The receiver is specified for an operating distance of about 50 meters.
