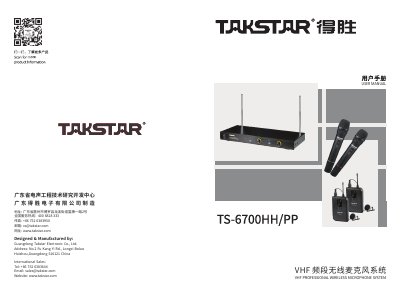

The Takstar TS-6700HH/PP user manual provides setup, operation, troubleshooting and specifications for the VHF wireless microphone system.
This manual explains how to install and operate the Takstar TS-6700HH/PP VHF professional wireless microphone system. It covers receiver placement, battery installation, antenna setup, and connection of audio outputs.
Safety precautions, troubleshooting tips, and detailed technical specifications are also included to help users achieve reliable performance and maintain the equipment. This manual is written in Chinese.
| Frequency Range | 220 MHz – 270 MHz |
|---|---|
| Frequency Deviation | ±15 kHz |
| Frequency Response | 60 Hz – 15 kHz |
| Signal‑to‑Noise Ratio | > 80 dB |
| Total Harmonic Distortion | 0.5 % (1 kHz) |
| Channels | 2 |
| Sensitivity | -80 dBm |
| Max Effective Range | 50 m (HH) / 30 m (PP) |
| Receiver Power Supply | DC 12 V / 300 mA |
| Transmit Power | < 10 mW |
The TS-6700HH can operate up to 50 meters in an open area.
Install the receiver more than 1 m above the floor and at least 1 m away from walls, avoiding corners and strong electromagnetic fields.
