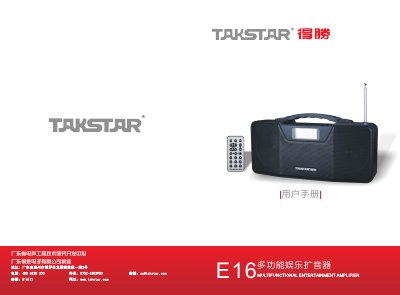

The Takstar E16 entertainment amplifier user manual explains operation, remote control, audio functions, charging, and technical specifications.
The Takstar E16 is a multifunction entertainment amplifier that supports music playback, FM radio, karaoke, recording, and line‑in input. It features a high‑resolution LCD, stereo dual‑driver output, and a rechargeable 14.8 V lithium‑ion battery.
The manual provides detailed instructions for using the remote control, operating the main unit, configuring system settings, and performing charging and firmware updates. Technical parameters, standard accessories, and safety notes are also included. This manual is written in Chinese.
| Frequency Response | 80 Hz‑12 kHz |
|---|---|
| Channel Output | Stereo |
| Rated Power | 2 × 14 W |
| Maximum Output Power | 2 × 25 W (≈50 W total) |
| Speaker Impedance | 4 Ω |
| Working Voltage | 14.8 V |
| Battery Capacity | 14.8 V / 1800 mAh |
| Charger Specification | DC 18 V / 0.8 A |
| Charging Time | ~6 hours |
| Dimensions | 310 mm × 133 mm × 93 mm |
| Supported Storage | USB/SD up to 32 GB |
Flip the main power switch to the ON position to power up, or to OFF to shut down the unit.
Connect a DC‑18 V / 0.8 A power adapter to the charging port; the battery icon will indicate charging progress.
