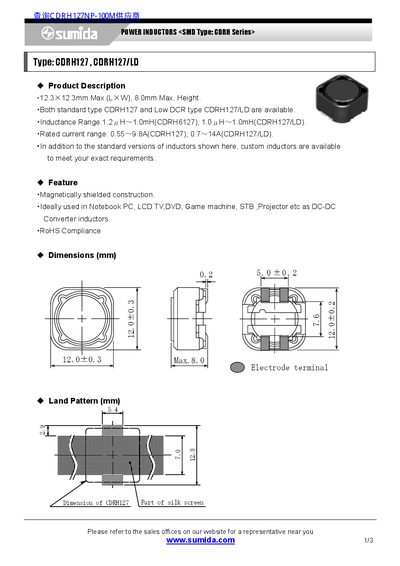

The Sumida CDRH127 and CDRH127/LD power inductors datasheet provides dimensions, inductance ranges, rated currents and RoHS compliance.
The CDRH Series SMD power inductors from Sumida are magnetically shielded components intended for use in notebook PCs, LCD TVs, DVD players, game machines, set‑top boxes, projectors and other DC‑DC converter applications. Both the standard CDRH127 and the low‑DCR CDRH127/LD versions are offered, with a range of inductance values and rated currents.
The document lists detailed specifications for each part number, including inductance, DC resistance, rated current, and mechanical dimensions. Tables for the CDRH127 and CDRH127/LD variants provide the full product line data.
| Inductance range (CDRH127) | 1.2 µH ~ 1.0 mH |
|---|---|
| Inductance range (CDRH127/LD) | 1.0 µH ~ 1.0 mH |
| Rated current range (CDRH127) | 0.55 A ~ 9.8 A |
| Rated current range (CDRH127/LD) | 0.7 A ~ 14 A |
| Maximum package dimensions | 12.3 × 12.3 mm, 8.0 mm height |
| RoHS compliance | Yes |
| Construction | Magnetically shielded |
The CDRH127 inductors cover an inductance range from 1.2 µH up to 1.0 mH.
The CDRH127/LD low‑DCR inductors are rated for currents between 0.7 A and 14 A.
Yes, the CDRH series inductors meet RoHS compliance requirements.
The CDRH127 package measures up to 12.3 × 12.3 mm with a maximum height of 8.0 mm.
