CDRH8D28/CDRH8D28/HP series power inductors are 8.3×8.3mm in size, 3mm high, and available in a variety of power and inductance ranges to meet customer needs. This series of inductors features magnetic shielding and is suitable for use in DC-DC converter applications in notebook PCs, game consoles, HDDs, DVCs, and LCD TVs.
The Sumida CDRH8D28 series are SMD power inductors designed for use in notebook PCs, game machines, HDDs, DVCs, LCD TVs and other DC‑DC converter applications. Both standard and high‑power (HP) versions are offered, featuring magnetically shielded construction and RoHS compliance.

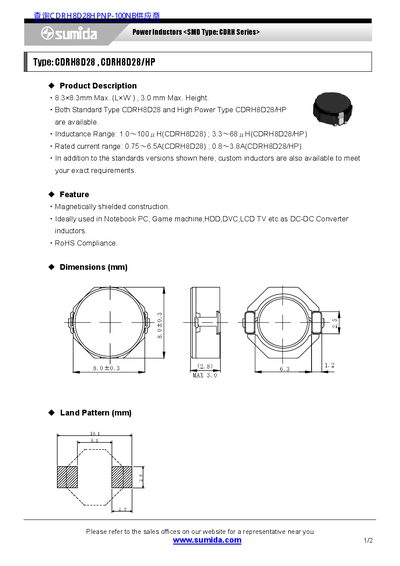

The datasheet provides detailed specifications such as inductance range, rated current, and maximum dimensions, and lists part numbers for a variety of inductance values. Custom inductors are also available to meet specific requirements.
| Inductance range (standard) | 1.0 ~ 100 µH |
|---|---|
| Inductance range (high power) | 3.3 ~ 68 µH |
| Rated current range (standard) | 0.75 ~ 6.5 A |
| Rated current range (high power) | 0.8 ~ 3.8 A |
| Maximum dimensions | 8.3 × 8.3 mm, 3.0 mm height |
| Shielded construction | Magnetically shielded |
| RoHS compliance | Yes |
The standard CDRH8D28 offers 1.0 ~ 100 µH, while the high‑power CDRH8D28/HP version provides 3.3 ~ 68 µH.
The CDRH8D28/HP inductors are rated for 0.8 ~ 3.8 A.
They measure up to 8.3 × 8.3 mm with a maximum height of 3.0 mm.
Yes, the inductors meet RoHS compliance requirements.
