SHB-1608 is a multilayer chip ferrite bead produced by PAGE, which has good anti-interference performance and is suitable for abnormal oscillation prevention of high frequency amplifying circuits and noise suppression of digital equipment.
The SHB-1608 series are multilayer chip ferrite beads designed for high‑frequency noise suppression. They are used in digital equipment, computers, automotive electronics, and other electronic instruments.

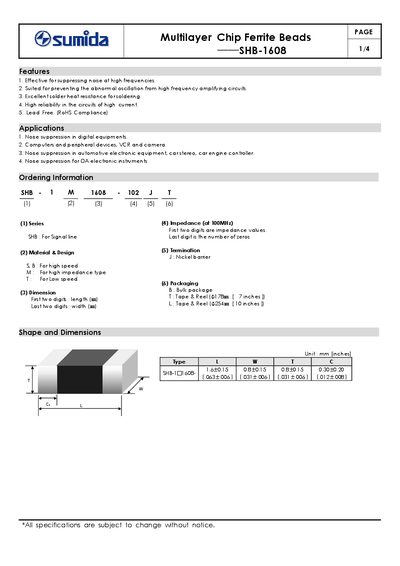

The datasheet lists ordering codes, dimensions, material options, impedance at 100 MHz, and packaging types. Electrical parameters such as DC resistance, rated current, and impedance curves are also provided for each part number.
| ROHS compliance | Lead free |
|---|---|
| Impedance (at 100 MHz) | Encoded in part number (first two digits) |
| Dimensions | Length = first two digits (mm), Width = last two digits (mm) |
| Packaging options | Bulk (B), Tape & Reel (T), Large Tape & Reel (L) |
Yes, they are lead‑free and meet ROHS requirements.
Impedance at 100 MHz is indicated by the first two digits of the part number, with the last digit representing the number of zeros.
