This document provides information on the product description, features, dimensions, and specifications of the General Power Transformer
The Sumida CEE128 is a general‑power SMD transformer designed for use in LCD TVs, notebook PCs and portable equipment. It offers a maximum operating frequency of 500 kHz and a maximum power rating of 3.1 V (at 300 kHz), and complies with RoHS regulations.

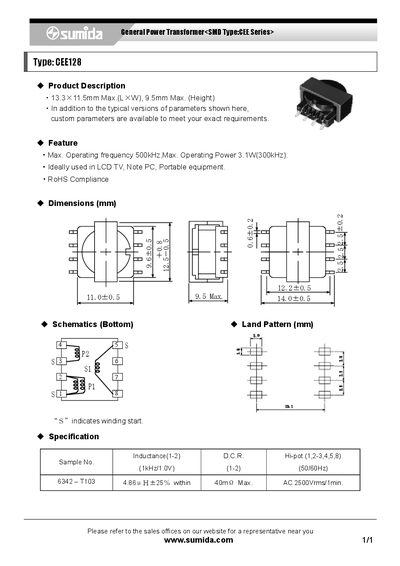

Its compact size measures up to 13.3 mm × 11.5 mm with a height of 9.5 mm. The device can withstand an AC voltage of up to 2500 Vrms for one minute. Detailed schematics, land‑pattern dimensions and electrical specifications are provided, and sales offices can be contacted via the Sumida website.
| Type | CEE128 |
|---|---|
| Max Operating Frequency | 500 kHz |
| Max Operating Power | 3.1 V V (300 kHz) |
| Dimensions (L × W × H) | 13.3 × 11.5 × 9.5 mm |
| Max AC Voltage | 2500 Vrms (1 min) |
The transformer can operate up to 500 kHz.
It measures up to 13.3 mm by 11.5 mm with a height of 9.5 mm.
Yes, it meets RoHS compliance.
It can handle up to 2500 Vrms for one minute.
