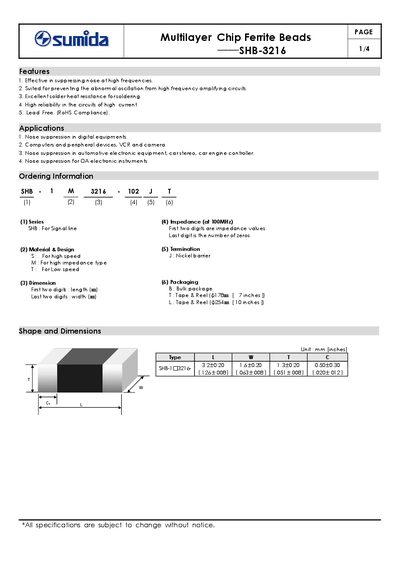

This document describes the features and applications of the SHB-3216 1/4 model multilayer chip ferrite beads. It is effective in suppressing noise at high frequencies, preventing abnormal oscillation from high frequency amplifying circuits, has excellent solder heat resistance, and high reliability in high current circuits. It is suitable for noise suppression in digital equipment, computers and peripheral devices, VCR and camera, automotive electronic equipment, and OA electronic instruments.
The SHB-3216 series are multilayer chip ferrite beads designed for effective high‑frequency noise suppression. They offer excellent solder heat resistance, high current reliability, and are lead‑free (ROHS compliant).\n\nThese components are used in digital equipment, computers, automotive electronics, and other high‑speed or high‑impedance circuits. The datasheet lists ordering codes, dimensions, impedance at 100 MHz, DC resistance, rated current, termination type, and packaging options.
| Impedance (at 100 MHz) | 35 Ω (example for 350 series) |
|---|---|
| Package Type | Bulk (B) or Tape & Reel (T/L) |
| Termination | Nickel barrier (J) |
They are used for noise suppression in digital equipment, computers and peripherals, automotive electronic equipment, and other high‑frequency circuits.
Yes, they are lead‑free and meet ROHS compliance.
The beads are offered in bulk packages (B) and tape‑and‑reel formats (T or L).
