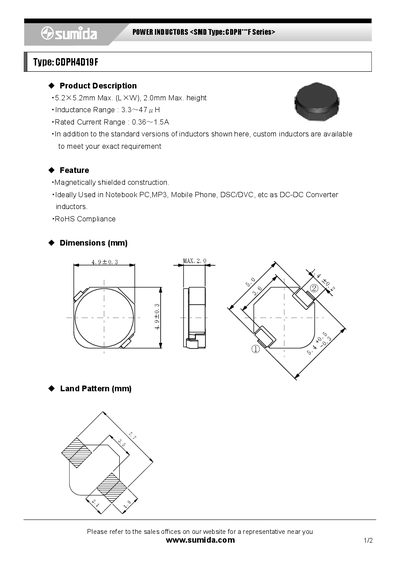

This PDF file is an introduction to the CDPH4D19F inductor, including its dimensions, inductance range, rated current, features and characteristics.
This document describes the Sumida CDPH™ F Series of Surface Mount Device (SMD) power inductors. The components feature a magnetically shielded construction with dimensions up to 5.2mm x 5.2mm and a maximum height of 2.0mm. They are designed for use in DC-DC converters within applications such as notebook PCs, MP3 players, mobile phones, and digital cameras.
| Max Dimensions (L x W) | 5.2mm x 5.2mm |
|---|---|
| Max Height | 2.0mm |
| Inductance Range | 3.3~47 uH |
| Rated Current Range | 0.36~1.5A |
They are ideally used in notebook PCs, MP3 players, mobile phones, and DSC/DVC as DC-DC converter inductors.
Yes, the product features RoHS Compliance.
