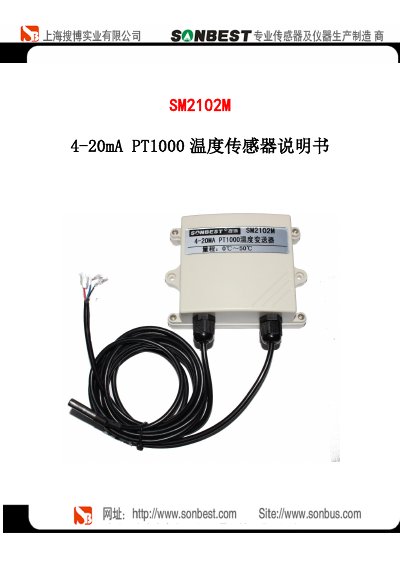

This document describes the Sonbest SM2102M 4-20mA PT1000 temperature transmitter, detailing its specifications and usage for industrial monitoring.
The Sonbest SM2102M is a temperature transmitter designed for long-distance transmission using a standard 4-20mA interface. It features an imported digital temperature sensor core with superior accuracy and stability, supporting temperature compensation and linearization processing.
This device is suitable for various applications including SMT industry monitoring, cold storage, pharmaceutical GMP systems, and environmental monitoring. The transmitter uses a separate probe design compatible with multiple external high-precision sensors. This manual is written in Chinese.
| Temperature Measurement Range | 0℃~+50℃ |
|---|---|
| Measurement Accuracy | ±0.5℃ |
| Communication Port | 4-20mA |
| Power Supply | DC12V-24V |
| Storage Temperature | -40 - 85℃ |
The calculation uses V= A*(I-4) /(20-16), where I is measured current and A is the range.
The device requires a DC voltage between 12V and 24V for operation.
