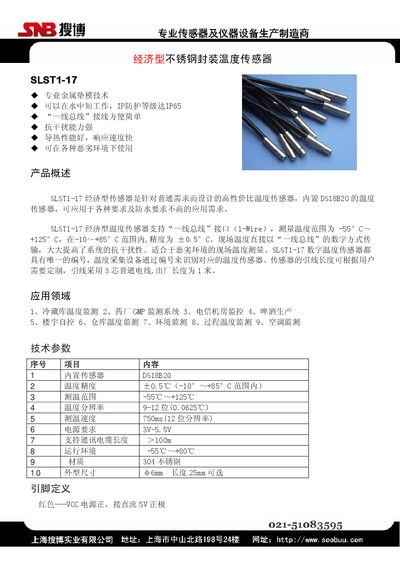

User manual for the Sonbest SLST1-17 stainless steel packaged temperature sensor.
The SLST1-17 is an economical stainless‑steel packaged temperature sensor that uses a built‑in DS18B20 chip and a 1‑Wire interface. It is designed for applications with moderate water exposure and offers IP65 protection, strong anti‑interference capability, and fast thermal response.
The manual provides product overview, application fields, technical specifications, pin definitions, communication protocol, and ordering information. It also lists related models in the SLST1 series and gives guidance on cable length, power supply, and mounting options. This manual is written in Chinese.
| Built‑in sensor | DS18B20 |
|---|---|
| Temperature accuracy | ±0.5 °C (-10 °C~+85 °C) |
| Measurement range | -55 °C~+125 °C |
| Resolution | 9‑12 bits (0.0625 °C) |
| Measurement speed | 750 ms (12‑bit) |
| Supply voltage | 3 V‑5.5 V |
| Maximum cable length | >100 m |
| Operating environment | -55 °C~+80 °C |
| Material | 304 stainless steel |
It measures temperatures from –55 °C to +125 °C.
The accuracy is ±0.5 °C between –10 °C and +85 °C.
It uses a single‑wire (1‑Wire) interface for digital temperature data transmission.
The sensor operates from a 3 V to 5.5 V DC supply.
