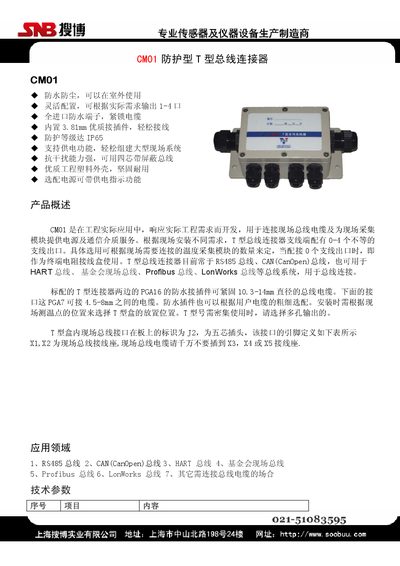

Sonbest CM01 Protected T-Type Bus Connector Operation Manual

This manual covers the operation, installation, and specifications of the Sonbest CM01 Protected T-Type Bus Connector, supporting various industrial bus…

Brand: SONBest
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 4
File format: PDF
File size: 379 KB
Published: 20 February, 2012
Updated: 16 October, 2026
MD5 checksum: B5D33876AD58FD45EF509FCDE38413CA
PDF: Sonbest CM01 Protected T-Type Bus Connector Operation Manual PDF

About this manual

The Sonbest CM01 Protected T-Type Bus Connector is designed for connecting field bus cables and providing power and communication media to field acquisition modules. It features an IP65 protection rating, making it suitable for outdoor use, and supports flexible configuration of 1 to 4 branch outputs depending on the specific application needs. The device is compatible with multiple bus systems including RS485, CAN (CanOpen), HART, Foundation Fieldbus, Profibus, and LonWorks. This manual is written in Chinese.

What's inside

Product Overview
Application Areas
Technical Parameters
Pin Definitions
Wiring Diagrams
Installation Method
Ordering and Selection

Specifications

Protection Rating	IP65
Operating Temperature	-55℃～+80℃
Supported Bus Cable Diameter	10.3-14mm
Supported Branch Cable Diameter	4.5-8mm
Max Communication Cable Length	>100m
Material	Engineering Plastic

Frequently asked questions

What bus systems does the CM01 connector support?

The CM01 connector supports RS485, CAN (CanOpen), HART, Foundation Fieldbus, Profibus, and LonWorks bus systems.

Can the CM01 connector be used outdoors?

Yes, the connector has an IP65 protection rating and is designed for outdoor use.

How many branch outputs can be configured on the CM01?

The connector supports flexible configuration of 1 to 4 branch outputs based on actual needs.
