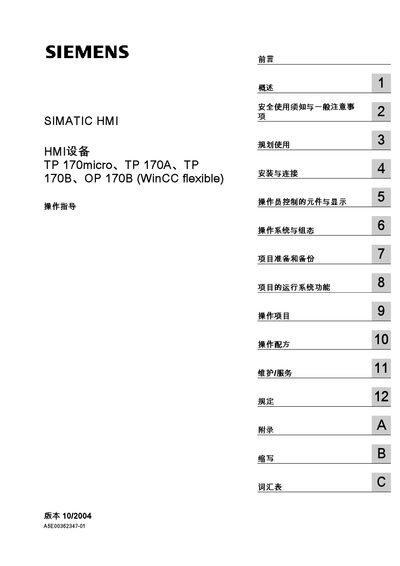

Operating guide for Siemens TP 170micro, TP 170A, TP 170B and OP 170B HMI devices with installation, configuration and maintenance instructions.
This manual provides safety information, planning guidelines, installation and connection procedures, and detailed instructions for operating the SIMATIC HMI devices TP 170micro, TP 170A, TP 170B and OP 170B using WinCC flexible. It is intended for users, commissioning engineers, service personnel and maintenance technicians.
The document covers the configuration of the operating system, project preparation and backup, project execution, recipe handling, maintenance/service tasks, regulatory information and includes appendices with abbreviations and a glossary. It also contains extensive tables describing the functional limits of each model, such as alarm capacities and screen counts. This manual is written in Chinese.
| Discrete alarms (TP 170micro) | 500 |
|---|---|
| Discrete alarms (TP 170B / OP 170B) | 2000 |
| Alarm text length per line (all models) | 80 characters |
The TP 170micro can handle up to 500 discrete alarms.
Each alarm text line may contain up to 80 characters.
