Siemens HMI operator panel, including key panel, mobile panel, simple panel, intelligent panel. These operator panels are powerful and can meet the needs of different scenarios.

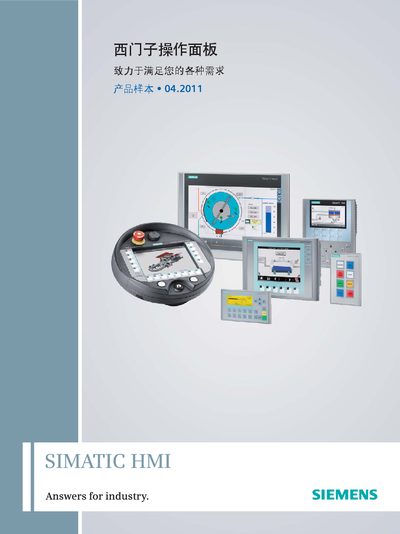

The document presents the full range of Siemens SIMATIC HMI operator panels, including Simple (精简) panels, Smart (精智) panels, mobile panels, and thin‑client panels. It outlines the functional capabilities, display sizes, touch or keypad operation, and integration with the TIA Portal engineering environment.
Technical details such as protection class (IP65/NEMA 4), communication options (PROFINET, PROFIBUS, USB, RS‑232), and extensive ordering information for each model are provided, together with accessories, installation size diagrams and software references. This manual is written in Chinese.
| KP8 PN | 8 function keys, LED backlight (multiple colors), 2 PROFINET interfaces |
|---|---|
| KTP400 PN | 3.8‑inch monochrome display, 4 function keys, Ethernet interface |
| Smart 700 | 7‑inch 16:9 widescreen, 256 colors, touch screen, 1 RS‑422/485 interface |
The panels are offered in sizes ranging from 3 inches up to 19 inches, covering a wide variety of applications.
All panels have an IP65/NEMA 4 protection rating, suitable for harsh industrial environments.
Panels support PROFINET/Ethernet, PROFIBUS, USB, and optional RS‑232/RS‑485 interfaces.
