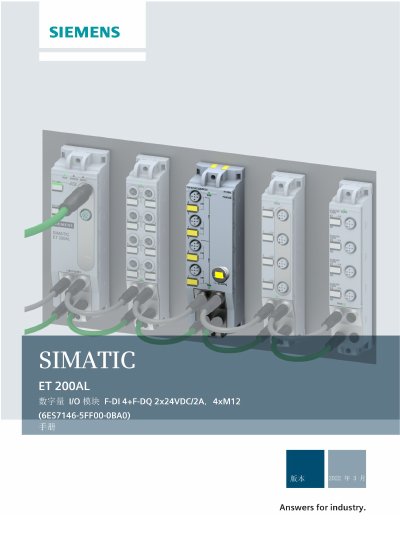

Siemens 6ES7146-5FF00-0BA0 Digital I/O Module F-DI 4+F-DQ 2x24VDC/2A, 4xM12 Device Manual

About this manual

The manual describes the Siemens SIMATIC ET 200AL digital I/O module F‑DI 4 + F‑DQ 2×24VDC/2A, 4×M12, covering product overview, wiring diagrams, parameter settings, address space, and application examples. It also includes safety warnings, diagnostic messages, and detailed technical specifications.

Additional sections address load switching for capacitive and inductive loads, response time limits, and recommended protective measures. The document is intended for qualified personnel who install, configure, and maintain the module in industrial automation systems. This manual is written in Chinese.

What's inside

• Product Overview
• Wiring
• Parameters / Address Space
• Applications
• Interrupt / Diagnostic Messages
• Technical Specifications
• Dimensions
• Response Time
• Load Switching

Frequently asked questions

What safety warnings are included in the manual?

The manual uses warning triangles for personal safety hazards and provides a hierarchy of warnings (danger, warning, caution, notice) to prevent injury or property damage.

What types of loads can be connected to the module?

Both capacitive and inductive loads can be connected, but the manual advises using external suppression circuits for inductive loads and limiting capacitive load size to avoid short‑circuit or overload detection.
