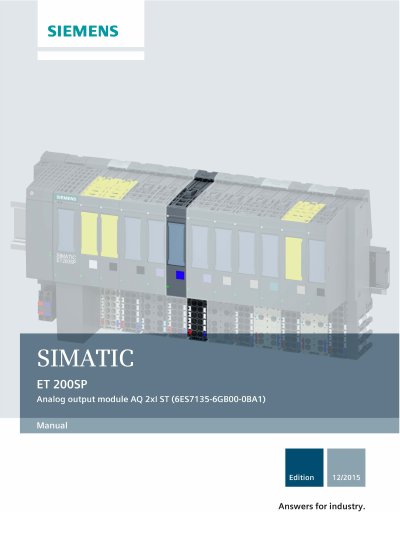

This Siemens manual provides product overview, wiring, parameters, diagnostics, and technical specifications for the ET 200SP AQ 2xI ST analog output module.
The document describes the SIMATIC ET 200SP AQ 2xI ST analog output module, covering its properties, wiring diagram, address space, and configuration parameters. It also explains interrupt handling, diagnostic alarms, and safety notices for qualified personnel.
Technical specifications such as supply voltage, power consumption, output ranges, and environmental limits are listed, along with details on module dimensions, weight, and isolation features. The manual supports integration with STEP 7 (TIA Portal) and provides reference tables for analog value representation.
| Number of analog outputs | 2 |
|---|---|
| Output range (current) | 0 mA to 20 mA |
| Supply voltage rated value | 24 V |
| Power loss (typical) | 1.5 W |
| Maximum input current | 110 mA |
| Maximum load resistance (current output) | 500 Ω |
| Module width | 15 mm |
| Module weight | 31 g |
It provides two analog outputs.
There is no isolation between the channels, but isolation to the backplane bus is provided.
The maximum load resistance for the current outputs is 500 Ω.
This manual explains 4 error codes. Open a code for its meaning, causes and what to do:
