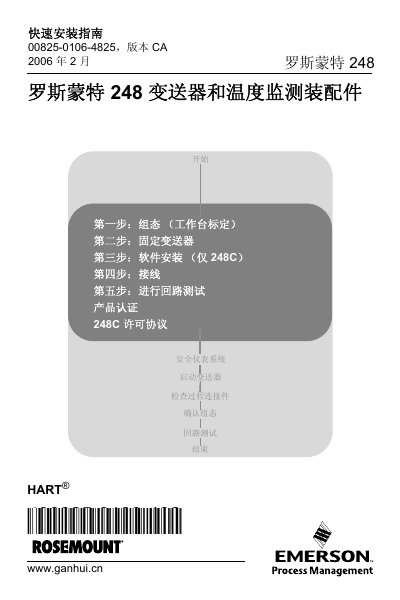

Rosemount 248 Transmitter Quick Installation Guide

About this manual

The Rosemount 248 Transmitter and Temperature Monitoring Assembly Quick Installation Guide outlines a five-step process: configuring the device using a HART communicator, fixing the transmitter in various configurations (top-mounted or DIN rail), installing software for the 248C model, wiring power and signal connections, and performing loop tests. The guide includes specific instructions for different sensor types and installation environments. This manual is written in Chinese.

What's inside

• Configuration
• Mounting Transmitter
• Software Installation
• Wiring
• Loop Test

Frequently asked questions

What is the required loop resistance range for the Rosemount 248 transmitter?

The loop resistance must be between 250 and 1100 Ohm.

What is the required power supply voltage range for the Rosemount 248 transmitter?

The power supply must be between 12 and 42.4 V dc.

What is the minimum power voltage required to operate the Rosemount 248 transmitter?

The power voltage must not be lower than 12 Vdc.
