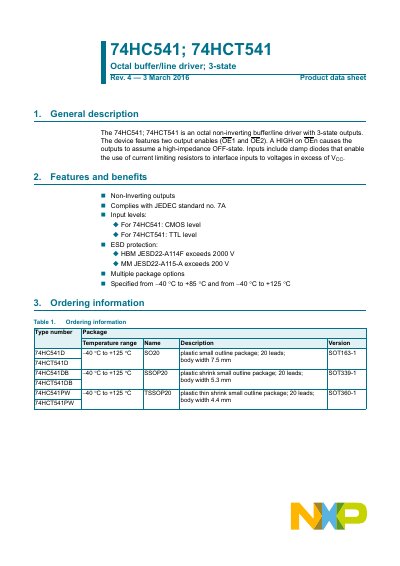

This datasheet details the NXP 74HC541 and 74HCT541 octal non-inverting buffer/line drivers with 3-state outputs, covering features, ordering, and…
The NXP 74HC541 and 74HCT541 are octal non-inverting buffer/line drivers featuring 3-state outputs controlled by two output enable inputs (OE1 and OE2). The devices include input clamp diodes to allow interfacing with voltages exceeding VCC using current-limiting resistors. They comply with JEDEC standard no. 7A and are available in multiple package options including SO20, SSOP20, and TSSOP20.
| Product Type | Octal non-inverting buffer/line driver with 3-state outputs |
|---|---|
| Output Enable Inputs | Two (OE1 and OE2) |
| Input Clamp Diodes | Included |
| Standard Compliance | JEDEC standard no. 7A |
| ESD Protection (HBM) | Exceeds 2000 V |
| ESD Protection (MM) | Exceeds 200 V |
| Output Current | -35 mA to +35 mA |
A HIGH on OE n causes the outputs to assume a high-impedance OFF-state.
They enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
The device is available in SO20, SSOP20, and TSSOP20 packages.
