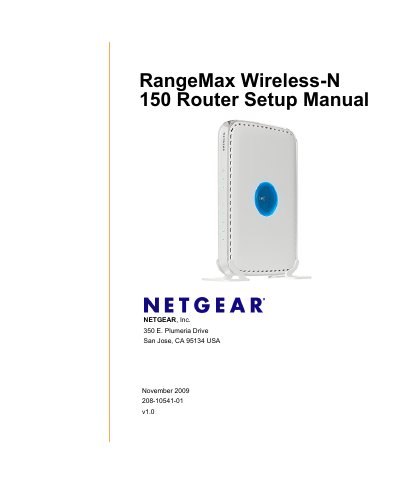

Setup manual for the NETGEAR WPN824N RangeMax Wireless‑N 150 router, covering unpacking, installation, configuration and basic troubleshooting.
This manual guides you through the initial steps of setting up the NETGEAR WPN824N RangeMax Wireless‑N 150 router, including unpacking, connecting power and Ethernet cables, and understanding the front and back panel indicators. It also explains the two setup methods – the Smart Wizard wizard and manual configuration – and provides details on firmware updates and product registration.
Technical specifications, factory default settings, and regulatory compliance information are provided in later sections, along with troubleshooting tips and related reference documents to help you maintain reliable wireless performance.
| Wireless Communication | Enabled |
|---|---|
| Maximum Wireless Signal Rate | Complies with IEEE 802.11 standard |
| Physical Dimensions | 223 x 153 x 31 mm (8.8 x 6 x 1.2 in.) |
| Weight | 0.5 kg (1.2 lb) |
| Power Adapter Output | 12 V DC @ 1A (12W max) |
| LAN Interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| WAN Interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| Default IP Address | 192.168.1.1 |
Press and hold the reset button on the back panel; the router will restore factory default settings.
The default login name and password are printed on the product label; typically the login name is "adminLogin" and the password is "password".
You can update the firmware using the Smart Wizard installation assistant from the CD or via the router’s web interface after logging in.
