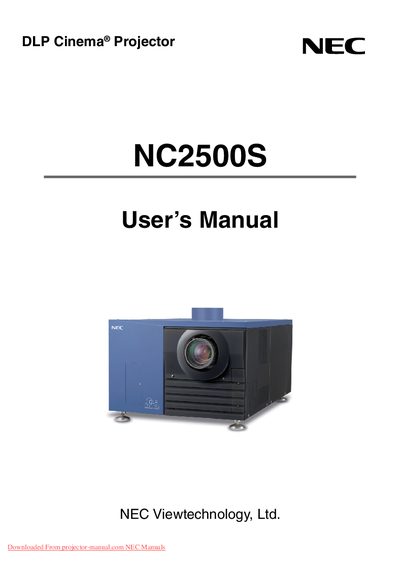

The NEC NC2500S DLP Cinema Projector User Manual provides safety, installation, power, cleaning, and maintenance instructions.
The manual begins with safety warnings to prevent fire and electric shock, including keeping the unit dry, not using extension cords, and never opening the cabinet because of high‑voltage components. It also outlines the required ventilation clearances and cautions about the high‑pressure lamp.
Installation instructions cover placing the projector on a flat, level surface in a dry area, keeping it away from direct sunlight and heat sources, and ensuring proper power supply connections. Cleaning guidelines advise shutting down power before cleaning the cabinet and lens, and using only mild detergents and a soft cloth.
| Projection Head Power | 0.95 kW 5 A AC 200‑240 V 50/60 Hz Single‑phase |
|---|---|
| Lamp Power Supply Unit (200‑230 V) | 8.0 kW 28 A AC 200‑230 V 50/60 Hz Three‑phase |
| Lamp Power Supply Unit (380‑415 V) | 8.0 kW 16 A AC 380‑415 V 50/60 Hz Three‑phase |
| Minimum Wall Clearance | 8 inches (20 cm) |
| Ventilation Outlet Clearance | 20 inches (50 cm) |
Do not expose the unit to rain or moisture, do not use the polarized plug with an extension cord, and never open the cabinet because high‑voltage components are inside.
Place it on a flat, level surface in a dry area, keep at least 8 inches from a wall and 20 inches from the lamp power‑supply vent, and avoid direct sunlight or nearby heat sources.
