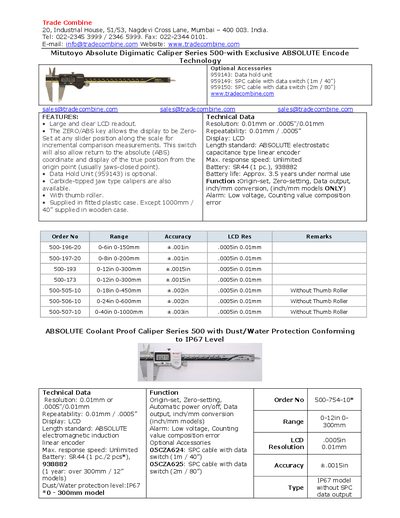

The Mitutoyo Series 500 Digimatic Caliper datasheet details features, technical specifications, optional accessories, and order numbers.
The Mitutoyo Series 500 Digimatic Caliper uses an absolute electrostatic capacitance linear encoder with a large LCD readout. Key functions include origin‑set, zero‑setting, data output, and inch/mm conversion, with optional thumb roller and carbide‑tipped jaws.
Optional accessories such as a data‑hold unit and SPC cables with data switches are listed, and a dust‑water protected IP67 version is offered. Technical data cover resolution, repeatability, battery life, and model‑specific ranges and accuracies.
| Resolution | 0.01 mm or .0005 in/0.01 mm |
|---|---|
| Accuracy | ±0.001 in .0005 in 0.01 mm |
| Battery life | Approx. 3.5 years under normal use |
| Display | LCD |
| Range (500‑196‑20) | 0‑6 in (0‑150 mm) |
A data‑hold unit (part 959143) and SPC cables with data switches (1 m/40″ or 2 m/80″) can be added.
The battery lasts approximately 3.5 years under normal use.
The dust‑water protected version conforms to IP67 level.
