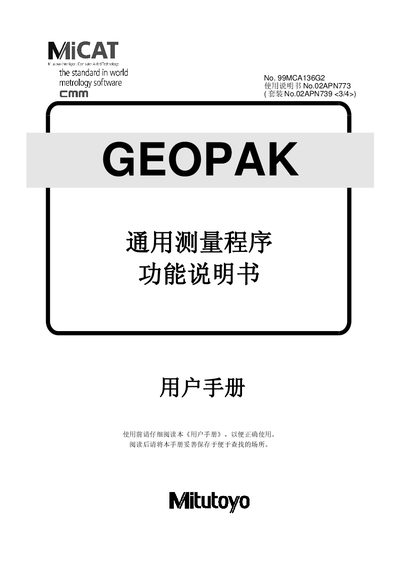

Mitutoyo 99M CA136G2 GEOPAK General Measure Program User Manual

This document is a user manual for a general measurement program, providing instructions on how to use the program and important considerations.

Brand: MITUTOYO
Category: Other
Document type: User Manual
Language: Chinese
Pages: 434
File format: PDF
File size: 3.7 MB
Updated: 29 September, 2023
MD5 checksum: 6ACB02E3E5189664397ACAB8E3852ED6
PDF: Mitutoyo 99M CA136G2 GEOPAK General Measure Program User Manual PDF

About this manual

The manual provides detailed instructions for using the GEOPAK general measurement program (version V2.4) with the MCOSMOS system. It includes safety notes, warranty information, and guidance on accessing help through the menu.

The document is organized into sections covering general functions and terminology, system settings, element measurement and calculation, device operation, tolerance inspection, probe management, and coordinate‑system handling. Each chapter offers step‑by‑step procedures and reference information for accurate measurement data. This manual is written in Chinese.

What's inside

General Functions and Terminology
Settings
Element Measurement and Calculation
Device Operation
Tolerance Inspection
Probe Management
Coordinate Systems

Specifications

Program version	V2.4
Document revision	3rd edition 2005
Copyright year	2002

Frequently asked questions

What version of the GEOPAK program does this manual cover?

It covers version V2.4 of the GEOPAK general measurement program.

How can I access help within MCOSMOS?

Use the help option in the menu, as the Chinese help key is not functional.

What warranty is provided for this equipment?

Free repair is provided for any failure occurring within one year of purchase.

When was this manual last revised?

The manual was revised to the 3rd edition in May 2005.
