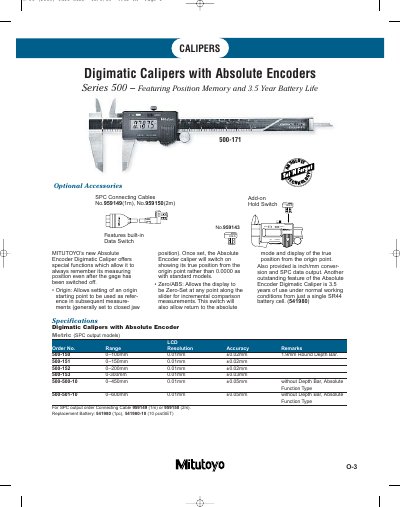

This PDF file introduces MITUTOYO's absolute encoder digital calipers, which have the features of position memory and 3.5 years of battery life.
This manual describes the features of Mitutoyo's Digimatic Calipers with absolute encoders, including the Origin function that sets a reference point and the Zero/ABS function for incremental measurements. It also details the 3.5‑year battery life provided by a single SR44 cell.
Technical specifications, optional accessories, dimensions and connection cable options are listed for each model in the 500 series, covering ranges from 0–100 mm up to 0–600 mm.
| Range | 0–100 mm |
|---|---|
| Remarks | 1.9 mm Round Depth Bar |
| Battery life | 3.5 years |
The caliper can operate for 3.5 years under normal working conditions using a single SR44 battery.
Origin allows you to set a starting point that the caliper displays as the true position after power‑on, instead of 0.0000.
Use the Zero/ABS function to set the display to zero at any point along the slider for incremental comparison measurements.
