Mitutoyo LSM-6900 Laser Scan Micrometer User's Manual

This manual introduces the use of LSM-6900 laser scanning micrometer.

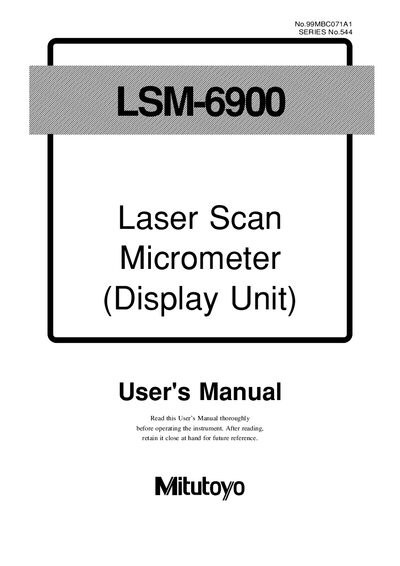

Mitutoyo LSM-6900 Laser Scan Micrometer User's Manual - cover page
Brand
MITUTOYO
Document type
User Manual
Language
English
Pages
188
File format
PDF
File size
6.1 MB
Published
17 October, 2023
Updated
17 October, 2023
MD5 checksum
7C68F55FAFD6E60432F75BC84F27817D
PDF
Mitutoyo LSM-6900 Laser Scan Micrometer User's Manual PDF

About this manual

This manual explains how to install, configure, and operate the Mitutoyo LSM-6900 Laser Scan Micrometer (Display Unit). It includes safety precautions for the low‑power Class 2 laser, recommended installation conditions, and detailed setup procedures for basic, calibration, and measurement modes.

The document also covers the interface options (RS‑232C, GP‑IB, Digimatic, etc.), inspection and maintenance steps, technical specifications, and service network contacts for worldwide support.

What's inside

  • Introduction
  • Setup
  • Displays and Key Operations
  • Measuring Conditions Setup
  • Measurement Mode
  • Interface Unit
  • Inspection and Maintenance
  • Specifications (Display Unit)
  • Restrictions
  • Service Network

Specifications

Laser classClass 2
Laser wavelength650 nm
Maximum laser power (scanning)1.5 mW
Operating temperature range0 °C to 40 °C
Operating humidity range35 % RH to 85 % RH
Download PDF (6.1 MB)
