Introduces the features and specifications of absolute measurement technology depth gauge.

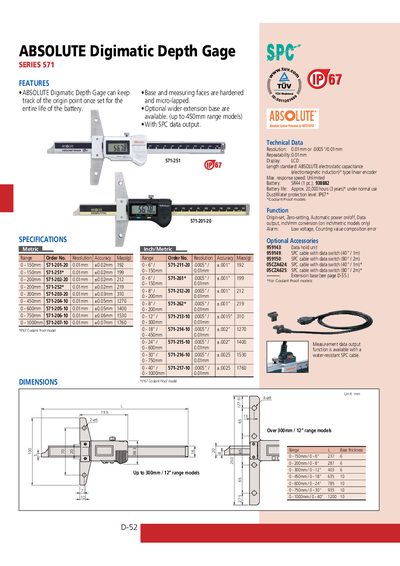

The ABSOLUTE Digimatic Depth Gauge series 571 offers IP67 dust and water protection, an LCD display, and unlimited response speed. It includes functions such as origin‑set, zero‑setting, automatic power on/off, and SPC data output, with a battery life of about 20,000 hours (≈3 years).
Technical data cover resolutions of 0.01 mm (0.0005 in) and repeatability of 0.01 mm. The handbook lists a range of models from 0‑150 mm up to 0‑1000 mm, each with specific accuracy values, and details optional accessories such as SPC cables and data‑hold units.
| Resolution | 0.01 mm or 0.0005 in |
|---|---|
| Repeatability | 0.01 mm |
| Battery life | Approx. 20,000 hours (3 years) |
| Dust/Water protection level | IP67 |
| Display | LCD |
| Max response speed | Unlimited |
| Accuracy (0‑150 mm model 571‑251) | +0.02 mm |
The repeatability is 0.01 mm.
The battery lasts approximately 20,000 hours, about three years.
It has an IP67 rating for dust and water protection.
