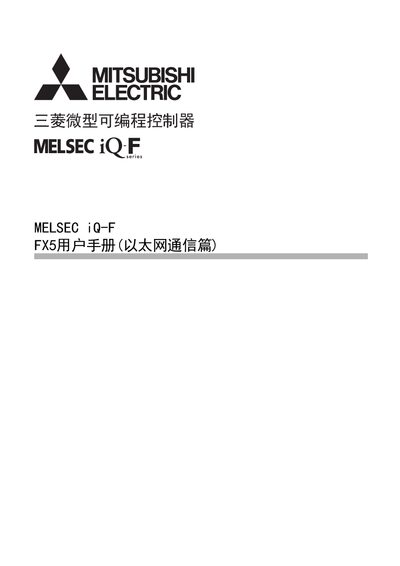

This manual explains the Ethernet communication features, specifications, setup, and troubleshooting for the Mitsubishi MELSEC iQ‑F FX5 programmable controller.
The document provides safety precautions and detailed instructions for installing, wiring, and operating the MELSEC iQ‑F FX5 controller's built‑in Ethernet port. It emphasizes proper grounding, cable handling, and the need to disconnect power before any wiring work.
It covers communication specifications, connection methods, SLMP functions, socket communication, remote password setup, IP address change procedures, and a troubleshooting guide, along with references to related manuals for hardware, programming, and other communication interfaces. This manual is written in Chinese.
| Data transfer speed | 100/10Mbps |
|---|---|
| Communication mode | Full‑duplex / Half‑duplex |
| Interface | RJ45 |
| Maximum cascade segments (100BASE‑TX) | 2 segments ×2 |
| Maximum cascade segments (10BASE‑T) | 4 segments ×2 |
| Supported protocols | MELSOFT connection, SLMP (3E frame), Socket, other protocol support |
| Simultaneous external device connections | up to 8 |
Up to eight external devices can be connected simultaneously.
The controller supports MELSOFT connection, SLMP (3E frame), Socket communication, and other protocol‑support functions.
