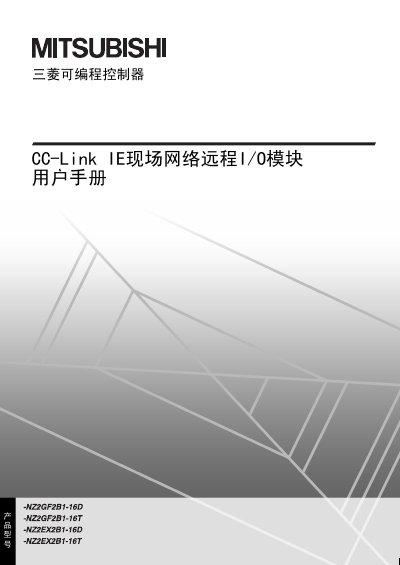

This Mitsubishi user manual provides safety, installation, wiring, and operation instructions for the CC-Link IE Remote I/O module.
The manual begins with safety precautions, emphasizing the need to read the guide before use and to follow all warning levels to prevent injury or equipment damage. It also outlines design considerations such as data retention during communication errors and the importance of interlock circuits.
Installation, wiring, and maintenance sections detail proper handling of power supplies, grounding requirements, cable routing, and limits on module assembly cycles. The document concludes with disposal instructions and contact information for Mitsubishi Electric Automation China. This manual is written in Chinese.
| Maximum assembly/disassembly cycles | 50 times |
|---|---|
| Required grounding resistance for FG terminal | < 100 Ω |
| Recommended separation between control and power cables | ≈ 100 mm |
| Output current capability (CF‑CON) | up to ~10× normal current |
The module may be assembled or disassembled no more than 50 times.
The grounding resistance must be less than 100 Ω.
Control and power cables should be spaced about 100 mm apart.
All external power supplies must be disconnected before any wiring work to avoid electric shock or module damage.
